전자 팬-Cooling Fan

제품코드	G041824
판매 회사명	(주)운영에프에이
연락처	053-604-6070
홈페이지	-
제품홍보관	http://blog.yeogie.com/woonyoung6070

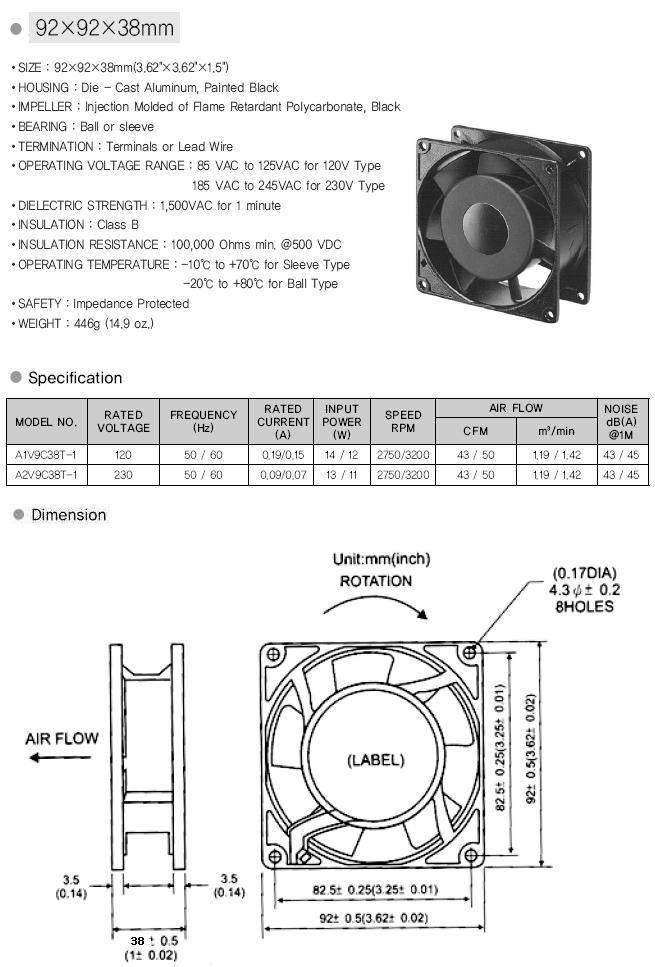

Model NoWYA1V9C38T-1 WYA2V9C38T-1

TYPE92×92×38mm (Ball Bearing type)

정격(Rating)100~230V

입력(Input)100~230V

출력(Output)-

용량(Capacity)0.07~0.19A



사양 및 특징

?SIZE : 92×92×38mm(3.62"×3.62"×1.5")
?HOUSING : Die - Cast Aluminum, Painted Black
?IMPELLER : Injection Molded of Flame Retardant Polycarbonate, Black
?BEARING : Ball or sleeve
?TERMINATION : Terminals or Lead Wire
?OPERATING VOLTAGE RANGE : 85 VAC to 125VAC for 120V Type
 185 VAC to 245VAC for 230V Type
?DIELECTRIC STRENGTH : 1,500VAC for 1 minute
?INSULATION : Class B
?INSULATION RESISTANCE : 100,000 Ohms min. @500 VDC
?OPERATING TEMPERATURE : -10℃ to +70℃ for Sleeve Type
 -20℃ to +80℃ for Ball Type
?SAFETY : Impedance Protected
?WEIGHT : 446g (14.9 oz.)
